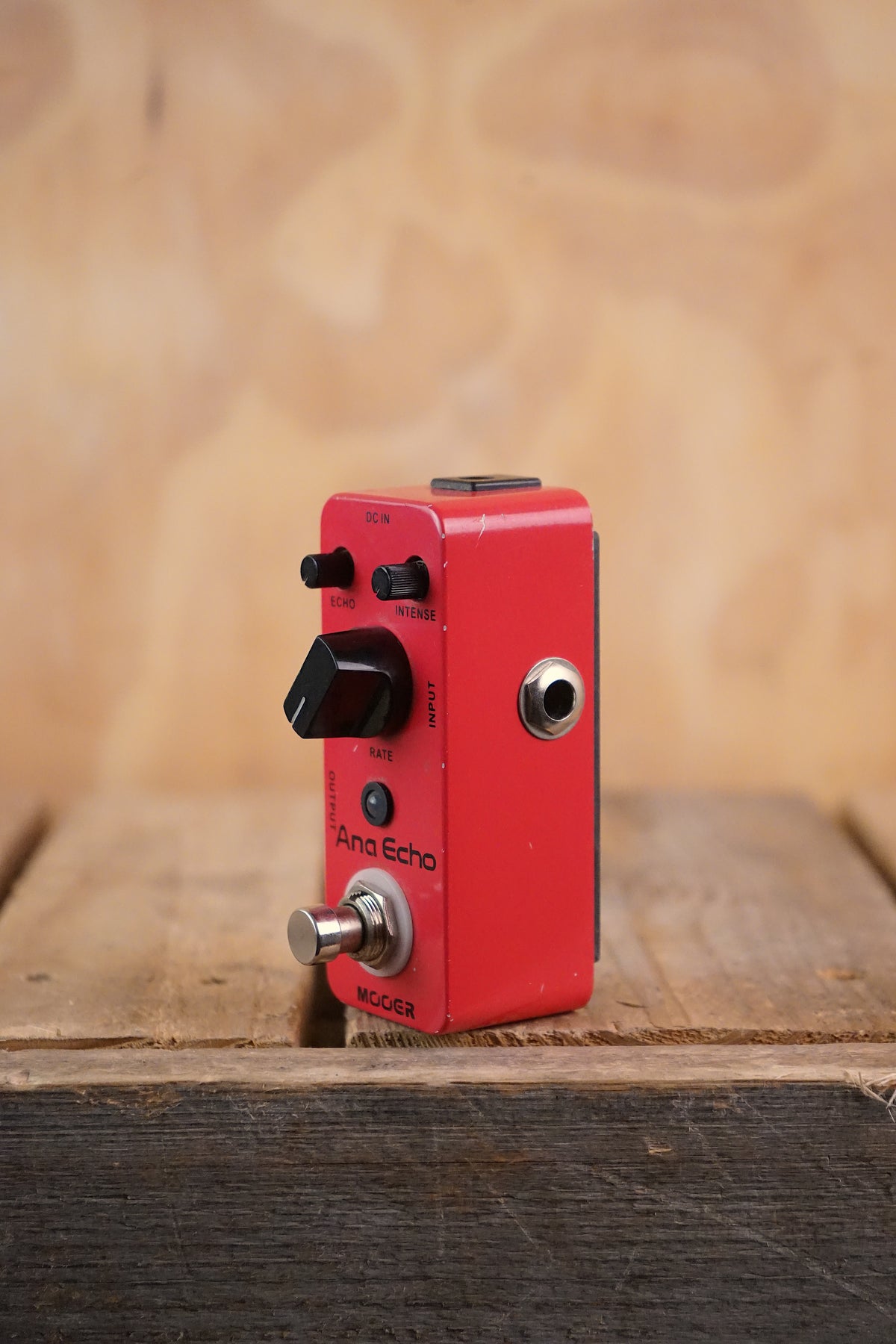

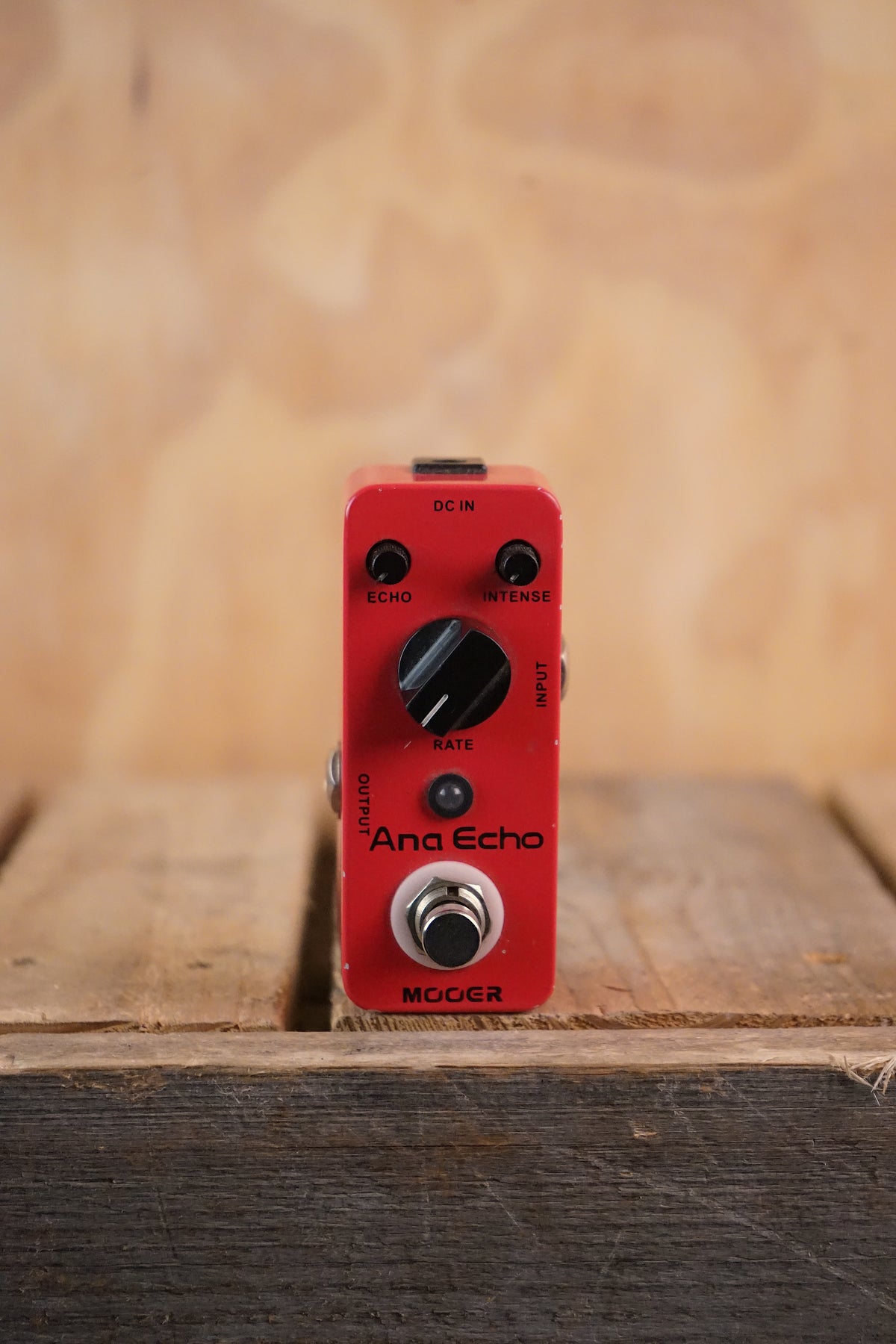

Mooer Ana Echo Analogue Delay Pedal – Used
Pairs well with
Mooer Ana Echo Analogue Delay Pedal – Used
Description
Quick Product Summary
The Mooer Ana Echo is a compact analogue delay pedal designed to deliver warm, smooth repeats without taking up much space on a pedalboard.
This used example is in Good condition, with cosmetic signs of previous ownership and normal pedalboard use. Its simple Echo, Intense and Rate controls make it easy to dial in everything from short slapback and doubling effects to longer, atmospheric delay sounds.
What Makes the Mooer Ana Echo Stand Out?
Fully Analogue Delay Circuit
The Ana Echo uses a full analogue circuit, giving its repeats the warm, naturally softened character associated with traditional analogue delay pedals.
20–300ms Delay Range
A delay range of 20ms to 300ms covers useful territory for slapback, rockabilly, blues, lead guitar and vintage-style echo effects.
Simple Three-Control Layout
The controls are deliberately straightforward:
-
Echo adjusts the level of the delayed signal
-
Intense controls feedback and the number of repeats
-
Rate sets the delay time
Compact Micro Pedal Format
At just over 93mm long and 42mm wide, the Ana Echo takes up very little pedalboard space while retaining a sturdy metal enclosure.
Who Is It For?
The Mooer Ana Echo is ideal for guitarists who want a straightforward analogue delay without menus, presets or complex controls.
It works particularly well for blues, rockabilly, classic rock, indie and lead guitar applications, while its small footprint also makes it useful for compact or crowded pedalboards.
At A Glance
| Feature | Details |
|---|---|
| Brand | Mooer |
| Model | Ana Echo |
| Effect Type | Analogue Delay |
| Condition | Used – Good |
| Delay Range | 20–300ms |
| Controls | Echo, Intense, Rate |
| Audio | Mono |
| Bypass | True Bypass |
| Enclosure | Metal |
| Battery Operation | No |
| Power | 9V DC |
| Power Supply | Not Included |
Condition Overview
Condition Grade: Good
This Mooer Ana Echo is in good used condition, with cosmetic signs of previous ownership and normal pedalboard use.
What’s Included?
-
Mooer Ana Echo Analogue Delay Pedal
-
No power supply included
Technical Specifications
| Specification | Details |
|---|---|
| Effect Type | Analogue Delay |
| Circuit | Full Analogue |
| Delay Time | 20–300ms |
| Echo Control | Delay Effect Level |
| Intense Control | Feedback / Repeats |
| Rate Control | Delay Time |
| Input | 1 x 1/4" Mono Jack |
| Output | 1 x 1/4" Mono Jack |
| Input Impedance | 470kΩ |
| Output Impedance | 470Ω |
| Bypass | True Bypass |
| Power | 9V DC |
| Polarity | Centre Negative |
| Current Draw | Approx. 26mA |
| Battery Operation | No |
| Dimensions | Approx. 93.5 x 42 x 52mm |
| Weight | Approx. 0.35 lbs |
| Construction | Full Metal Shell |
Power Requirements
The Mooer Ana Echo requires a suitable regulated 9V DC centre-negative power supply.
Current consumption is approximately 26mA.
The compact Micro Series enclosure does not accommodate a battery.
No power supply is included with this used pedal.
FAQs
Is the Mooer Ana Echo a true analogue delay?
Yes. Mooer specifies the Ana Echo as using a full analogue delay circuit.
What is the maximum delay time?
The Ana Echo provides up to 300ms of delay.
What is the shortest delay time?
The delay range starts at approximately 20ms.
What does the Echo control do?
Echo adjusts the level of the delayed signal relative to your dry guitar sound.
What does the Intense control do?
Intense controls the amount of feedback, determining how many delay repeats are produced.
What does the Rate control do?
Rate adjusts the delay time between the original note and the repeat.
Can it produce slapback delay?
Yes. Shorter Rate settings are well suited to slapback and rockabilly-style echo sounds.
Can it produce longer atmospheric delays?
Yes. Turning the delay time towards its maximum 300ms setting creates longer and more spacious repeats.
Does it use true bypass?
Yes. The Ana Echo features true bypass switching.
Is it mono or stereo?
The Ana Echo is a mono pedal, with one input and one output.
Can it run from a battery?
No. The compact enclosure does not provide battery operation.
What power supply does it require?
It requires a regulated 9V DC centre-negative supply.
How much current does it draw?
The pedal draws approximately 26mA.
Is it suitable for a compact pedalboard?
Yes. Its Micro Series enclosure measures approximately 93.5 x 42 x 52mm, making it particularly space-efficient.
Is a power supply included?
No. No power supply is included with this used Ana Echo.
What condition is this example in?
This example is graded Good, with cosmetic signs of previous use consistent with a pre-owned effects pedal.
